Home Equipments ACRYLIC PANEL EDGE TRIMMER

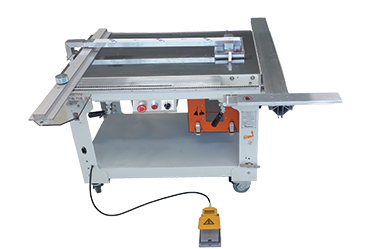

ACRYLIC PANEL EDGE TRIMMER

Introducing the all-new Acrylic Panel Edge Trimmer

Description

Introducing the Acrylic panel edge trimmer machine where only with one trimming work, you can work at both 90 °and 45 ° at the same time, while separate work is also possible. This machine can process not only acrylic panel but also cut-plane of plate materials. For an acrylic plate, if you gloss after the bevel work, mirror surface work is also possible.



Specifications



Model Name : MR-E300R
Voltage : 220V
Frequency : 50 ~ 60Hz
Power Consumption : Router 2,000W
Dust Collection : 1,040W
Router Blade main axis: 12Ø external diameter 10~30Ø
Processable Size: rectangle-20mm, 45 +rectangle-30mm
RPM : 22,000rpm
Full Size (L x W x H): 1000mm x 600mm x 900
Weight : 85kg



Trimmer can work at both 90 ° and 45 ° at the same time.

The Router height can be controlled by using the jack handle.
