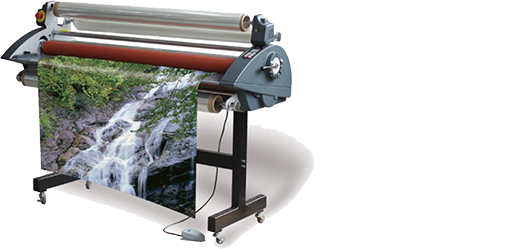

RSC-1651LSHF WIDE FORMAT LAMINATOR

The RSC-1651LSHF laminator is the perfect laminator for laminating or mounting wide format graphics/materials.

RSC-1651LSHF WIDE FORMAT LAMINATOR

RSC-1651LSHF WIDE FORMAT LAMINATOR

This cold laminator is unique in that it includes a heat assist top lamination roller. Adding heat to cold pressure sensitive laminating film helps reduce silvering.



Wide Format Laminating and Mounting



  • The 65” wide entry is ideal for laminating and mounting wide format graphics.
  • Combine with a wide format inkjet printer to provide endless finishing solutions.
  • 1” Nip permits laminating and mounting on substrates up to 1” thick.



Easy to Use



  • Quick Notch system for gap adjustment and auto-grip hubs allow quick and easy replacement of roll films.
  • Digital controls for speed, and includes a rear remote control and foot pedal for hands-free operation.



Versatile Laminating



  • Use with pressure sensitive laminator films.
  • Heat assist top roller heats up to 122 degrees Fahrenheit
  • Heat helps reduce the phenomenon know as "Silvering" when using some cold lamination films.



Reliable



  • The durable and sturdy frame construction and requires little assembly and minimal maintenance.
  • The RSC1650LSH comes with a 1 year part & labor (Rollers 6 months) warranty.

Specifications:

Mounting
Up to 1"
Take-Up System
Chain link to main motor
Transport Type
2 roller
Speed Control
Digital (9 settings)
Reverse
Yes
Cold Lamination
Yes
Cross Cutter
Yes
Remote Control
Yes
Foot Pedal
Yes
Side Slitters
No
Model Number
RSC-1650LSH
Document Guides
Yes
Encapsulation
Yes
Rear Wind-Up Assembly
Optional
Front Feeder Assembly
Optional
Liner Take Up
Yes
Unit Length (in.)
77
Unit Width (in.)
25.5
Unit Height (in.)
47.5
Unit Weight (lbs.)
374
Voltage
AC 120V / 60Hz
Max. Laminating Width
65 inch
Consumption (Watts)
1200 W
Warranty
1 year part & labor (Rollers 6 months)
Film Core Size
Auto Grip 3'', (2.25'' optional)
Film Thickness
1-10 mil
Drive Motor
DC geared
Warm-Up Time (min.)
10
Laminating Speed ft/min
16.4
Adjustable Temperature
Digital up to 122 F
